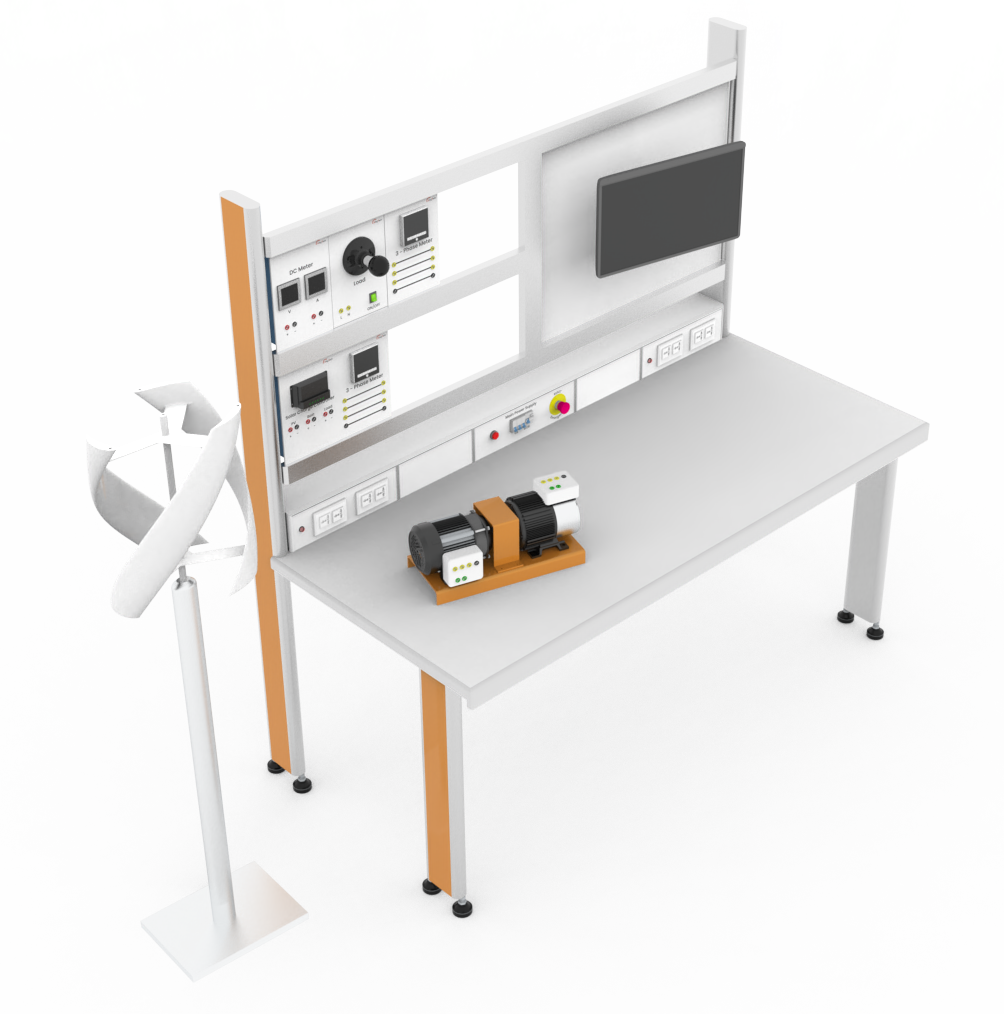

Wind Power Plant

Product Features

Wind Turbine Characteristics
Stand-Alone Renewable Energy Systems
doubly-fed induction generator system
Micro Grid-Connected WTG System
Active and Reactive Power Control
Multifunctional Energy Measurement
Developed Interoperable SCADA System
Software for System Simulation and Design

Training Contents

Investigation and operation of small wind power stations
Design and initial operation of a small wind power generator
Operation with fluctuation wind force in off-line operation
Design of an off-grid system for the generation of AC voltage
Wind power generator in grid-connected operation
Software simulation and design

Specifications

Wind Turbine Simulator

Permanent Magnet Synchronous Generator (PMSG) : 1 hp
Induction Motor : 1 hp
Inverter Motor Drive Power Rating : 1 kVA

Stand-Alone Renewable Energy Systems

Wind Turbine Generator Power Rating : 100 W
Battery Charger Power Rating : 100 W
Battery Voltage : 12 V
Battery Capacity : 12 Ah
Inverter Off Grid : 1 Phase
Power Rating : 100 W

Power meter 3 Phase

3 Phase 4 Wire System
Display Type Backlit LCD
Class 1 reactive energy conforming to IEC 62053-24
Class 0.5S active energy conforming to IEC 62053-22
Class 5 harmonic distortion (I THD & U THD)
Total harmonic distortion up to the 31st harmonic
measurement current 5 – 6000 mA
(Phase to Phase ) measurement voltage 35 – 480 V AC 50/60 Hz
(Phase to Neutral) measurement voltage 20 – 277 V AC 50/60 Hz
Energy Measurement Displayed Vrms, Irms, P, Q, S, PF, f, THDv, THDi
Communication Port Protocol Modbus RTU 4800/ 9600/ 19200 Bps, 38.4 Kbps Even/Odd Or None – 2 Wires, Insulation 2500 V
Communication Service Remote Monitoring

Inverter Three - Phase

Maximum input power : 5.5 kW
Nominal voltage : 370 Vdc
Operating voltage : 100 Vdc – 550 Vdc
Startup voltage : >125 Vdc
Startup power : 30 Watt
Absolute maximum voltage : 600 Vdc
Full power range : 220 Vdc – 450 Vdc
Number of inputs : 2 pairs MC4
Rated current : 12 Adc x 2
Maximum short circuit current per MPPT (Isc): 15A / 15A
Power factor output adjustable : 0.80 leading – 0.80 lagging

SCADA System

SCADA remote operation

Inverter Single - phase

Inverter 1-Phase Off – grid : Pure Sine wave 300 Watt

System Supported

Dimension : D 800 x W 1500 x H 750 mm.
Main Power Inlet 1 phase with electric wire : 3 m.
Main Power Inlet 3 phase
Circuit Breake : 1 phase
Earth Leakage Circuit Breaker
Pilot Lamp : 1 unit
Emergency stop : 1 unit
Dual Outlets Plug: 220 Volt 2 unit
Table surface melamine-coated plywood and covered with PVC edges

Wind Turbine Generator

Helix Wind Turbine
DFIG Converter
System Design
Simulation Results
Real-time monitoring, management and control

Custom Product Requirements
