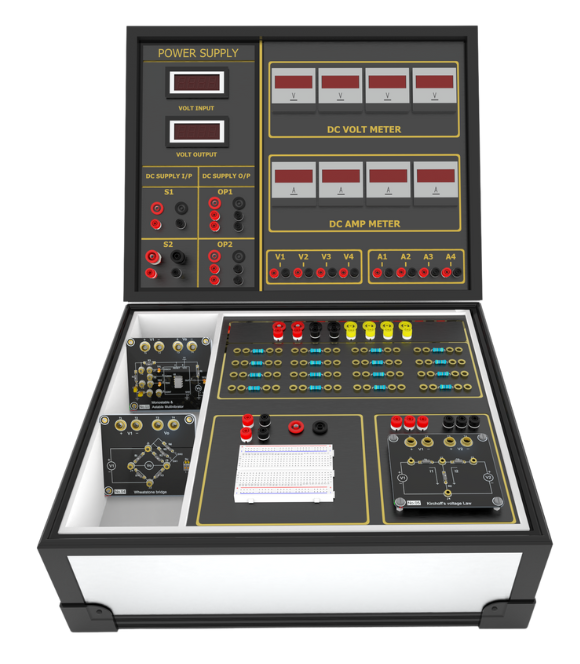

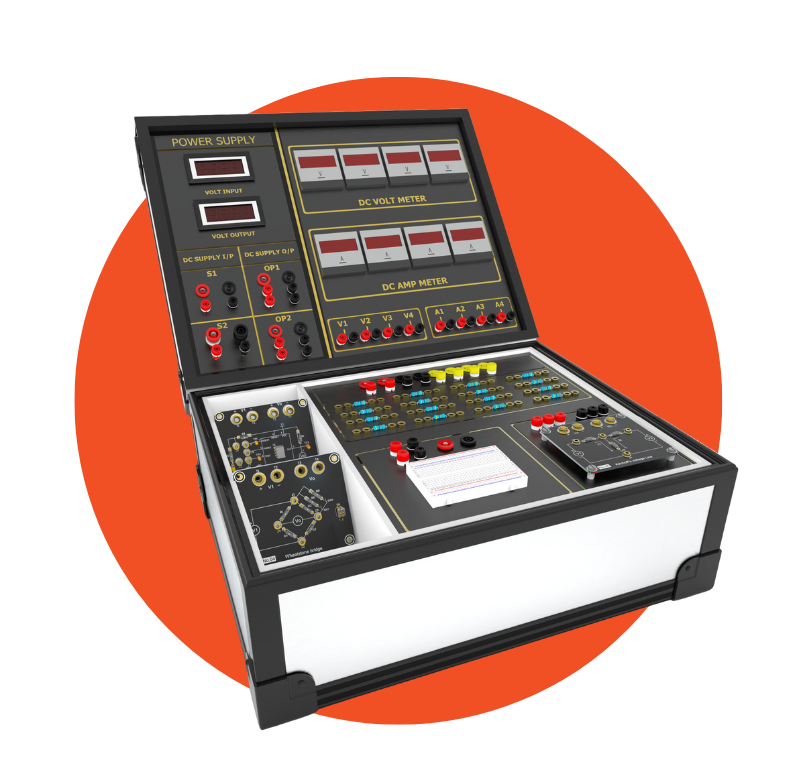

Experimental Box of
DC Electrical Circuit
Product Features

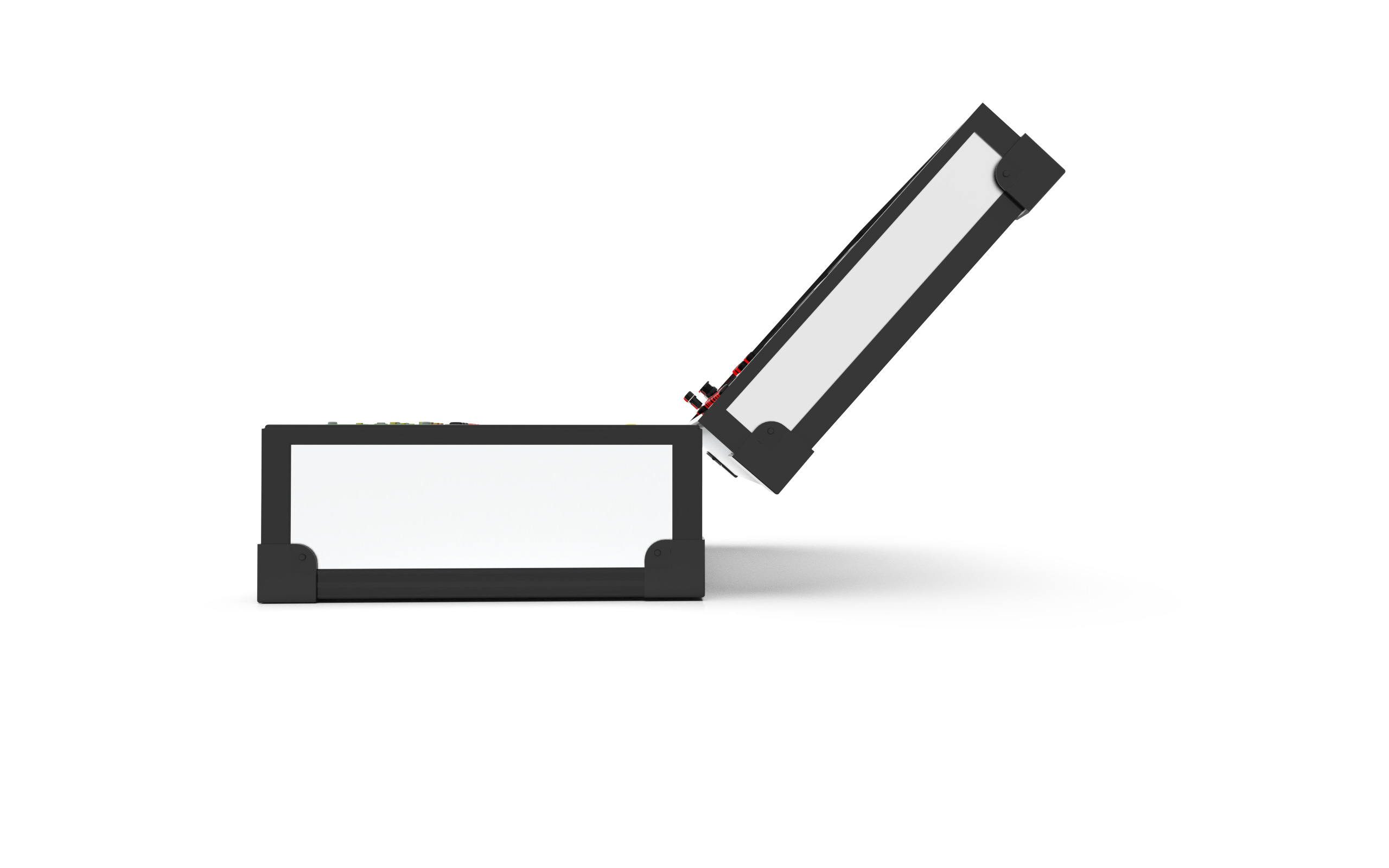

Portable DC Circuits Experimental Box
Interoperability Between The Mainboard and Experimental Modules
Built-In Power Supply Display
Built-In Measuring Panel Meters
Terminal Jack 2mm and 4mm Were Supported by The Experiment Box
Specifications
Ohm’s Law
Series, Parallel and Combinations of Resistors
Kirchhoff’s Law
Voltage Division, Current Division, Wheatstone Bridge
Characteristic of Series, Parallel, Series-Parallel Circuit
Mesh Current Analysis
Node Voltage Analysis
Superposition Theorem
Thevenin’s Theorem
Norton’s Theorem
Maximum Power Transfer Theorem
Inductors in DC Circuits
Capacitor in DC Circuits
First-Order Circuits
Second-Order Circuits
Datasheet
DownLoad
